iOBD2 Bluetooth Adapter Vehicle Communicator for iSO & Android

What is iOBD2?
iOBD2 is an OBDII Bluetooth adapter that communicates with your car and
displays you the data by your smart mobile devices.  iOBD2 supports iOS or
Android devices in one unit by Bluetooth. iOBD2 works with cars that are
OBD II/EOBD compliant.

How iOBD2 can help you?

Read and Clear trouble codes
iOBD2 talks to your car through the OBD2 port which normally locates under
the steering wheel. When the MIL (Malfunction Indicator Light) is on, you can
easily plug the iOBD2 adapter into the OBD II port. Once connected,
the iOBD2 app will display the trouble codes with detailed information.
You can simply clear the codes by yourself.

Read real-time data of your car engine
Knowing the real-time data of your car engine is important to keep your
car engine healthy.  iOBD2 shows you the important parameters and
helps to monitor your car at any time.

Display you live data with four slick virtual dashboards
There are four modes with the virtual dashboards, idle mode, cruise mode
sport mode, and custom mode.  The first three modes display you different
data in the custom mode, you can select to display the data you preferred
such as power, horse power, torque, etc.

Display you live data with four slick virtual dashboards
Whenever you drive for a trip, iOBD2 will automatically track your trip and
save your trip data in history menu, including the trip start time, trip end
time, total trip time, trip distance, average speed and average fuel
consumption.

iOBD2 is an OBDII diagnostic app for monitoring the engine system of your car.
It is compatible with iOS and Android system.
It works with car that is OBDII/EOBD compliant.

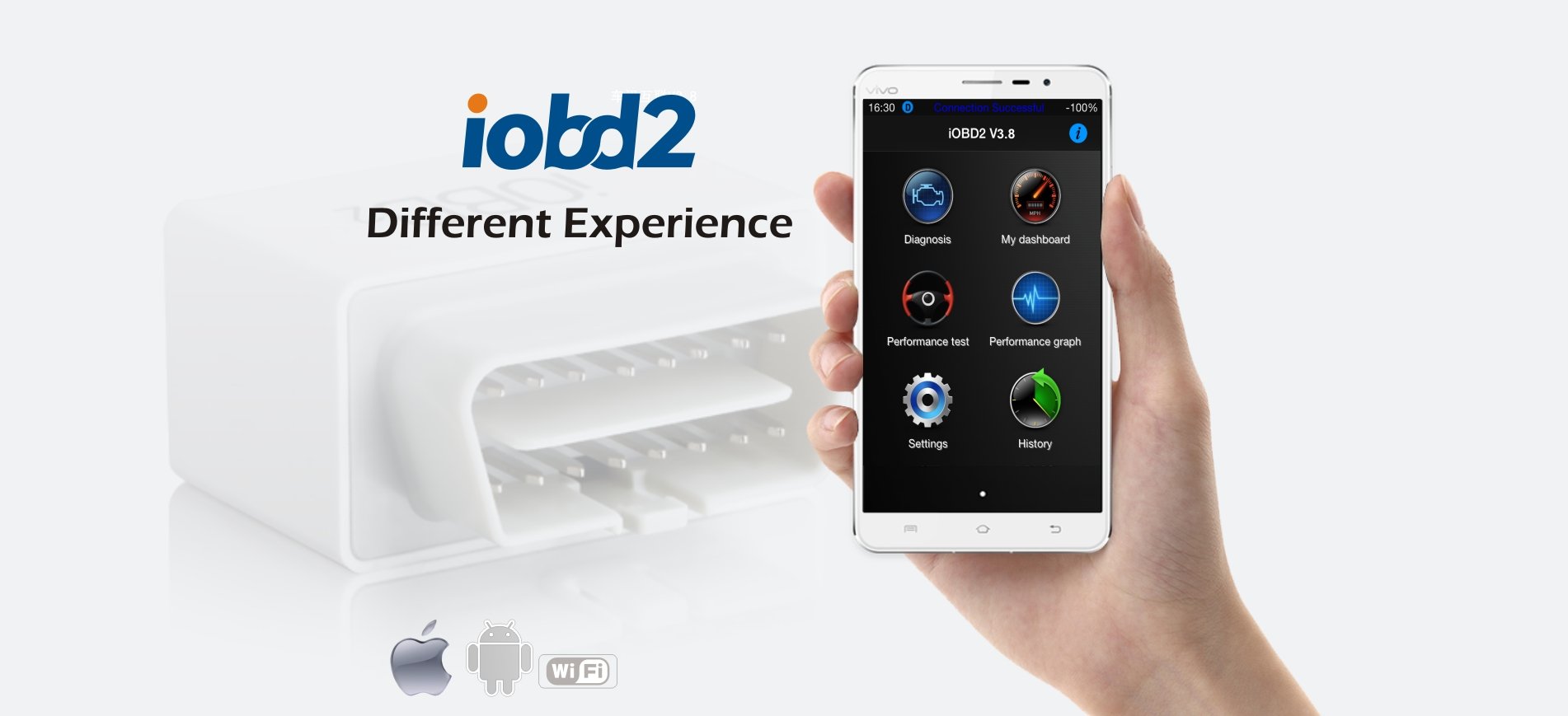

There are seven menus in the iOBD2 app:
- Diagnosis
- My dashboard
- Performance test
- Performance graph
- Settings
- History
- Information

Diagnosis
In this Menu, you can use all the standard OBDII diagnostic functions
[ Trouble code ] Read the current DTC with detailed information on the codes
[ Freeze frame ] ECU will set DTCs and record the data stream of the car
engine at the moment when emissions related faults occurred.  The data
is called freeze frame data.
[ Readiness test ] Show the status of readiness test, click Readiness test
in the menu, the screen will display the test status of the car.
[ Vehicle information ] Read vehicle info. Such as Vehicle Identification
Number (VIN), Calibration IDs (CALID) and Calibration Verification number (CVN).
[ O2 sensor test ] Allow access to the on-board oxygen sensor monitoring test results.
[ On-board monitor test ] To monitor the operation of the system of external device control panel.
[ Component test ] Allow to access a particular component / the diagnostic monitoring results of in continuous monitoring system.  E.g. the monitoring of the catalyst and evaporation system.




My Dashboard

This is a virtual dashboard with four modes.  You can seedifferent data in each mode.

[ Idle mode ] Show you the engine rotational speed, water temperature, battery voltage, Air-intake temperature, instant fuel consumption (static), average fuel consumption.

[ Cruis mode ] Show you the vehicle speed, the current engine load, water temperature, vehicle travel time, vehicle travel average speed, continuous running mileage; instant fuel consumption.

[ Sport mode ] Show you the engine rotational speed, vehicle speed, ater temperature.

[ Custom mode ] Select the perferred parameters such as power, torque, horse power, etc.

Performance test
In this function, you can do the acceleration / deceleration test and get
some idea on how your car performs in speed.

[ Acceleration / Deceleration test ] Test acceleration / deceleration process
time and distance.
[ 0 to 400m acceleration test ] Test time from 0 to 400 meters.



Performance graph
This function displays you the real time engine speed / vehicle speed,
torque / RPM / Power in dynamic curves. Besides, when you are reading
the data stream, you can click a parameter to display it in dynamic curve
(this feature is now only available for iOS version), which you can observe
the changes more visually.

Setting
In this menu, you can choose the language, connection mode, unit, and set Alarm.
In the vehicle setting, you can see the basic vehicle information and change
parameters such as weight, fuel consumption coefficient, and speed coefficient.



History
It is to save and review the recorded diagnostic data of the tested cars,
such as live data, freeze frame data, trip record and my dashboard data

Information
In this menu, you can find information on how to set the Bluetooth connection
how to buy iOBD2 hardware, what your iOBD2 hardware and software version is.



Specifications:
Brand: XTool
Color: White
Dimension: 48 x 25 x 42 mm
Item Weight: 29g
Operating Voltage: 12V
Operating Current: 60mA
Sleep Mode Current: 10mA
Operating Temperature: -20 to 50C
Bluetooth Standard: Bluetooth 3.0
Supported device: iOS, Android device


Package Included
- iOBD2 MFi BT x 1 piece
- Chinese / English Instruction Manual x 1 piece
** SMARTPHONE IS NOT INCLUDED **
